Leveraging a Weighted FTN

FTN (Forecasted Trajectory Neighbors) is an instance-based (good old KNN) approach for improving multi-step forecasts, especially for long horizons.

In the previous notebook (04-ftn_longhorizon), I described how to couple FTN with NHITS. In short-term forecasts, FTN is, in principle, not effective. So, it makes sense to weight it’s effect differently along the horizon. Here’s how to do that using a validation set.

This notebook explores how to optimize FTN’s weights along the horizon

Loading LongHorizon’s ETTm2 dataset
Fitting a NHITS model and predicting on a validation set
Fitting FTN and predicting on a validation set
Optimize FTN’s weights
Re-fit NHITS and FTN using all training data
Getting forecasts from NHITS and post-processing them using a weighted FTN
Evaluating all models

[23]:

import warnings

warnings.filterwarnings("ignore")

If necessary, install the package using pip:

[2]:

# !pip install metaforecast -U

1. Data preparation

Let’s start by loading the dataset. This tutorial uses the ETTm2 dataset available on datasetsforecast.

We also set the forecasting horizon and input size (number of lags) to 360, 6 hours of data.

[3]:

import pandas as pd

from datasetsforecast.long_horizon import LongHorizon

# ade is best suited for short-term forecasting
horizon = 360
n_lags = 360

df, *_ = LongHorizon.load('.',group='ETTm2')

df['ds'] = pd.to_datetime(df['ds'])

Setting up a function to split the dataset into training and testing sets:

[4]:

def train_test_split_df(df: pd.DataFrame):
    df_by_unq = df.groupby('unique_id')

    train_l, test_l = [], []
    for g, df_ in df_by_unq:
        df_ = df_.sort_values('ds')

        train_df_g = df_.head(-horizon)
        test_df_g = df_.tail(horizon)

        train_l.append(train_df_g)
        test_l.append(test_df_g)

    train_df = pd.concat(train_l).reset_index(drop=True)
    test_df = pd.concat(test_l).reset_index(drop=True)

    return train_df, test_df

Prepare training, testing, development, and validation sets

[5]:

train_df, test_df = train_test_split_df(df)
dev_df, valid_df = train_test_split_df(train_df)

dev_df.query('unique_id=="HUFL"').tail()

[5]:

	unique_id	ds	y
56875	HUFL	2018-02-13 10:45:00	-1.633847
56876	HUFL	2018-02-13 11:00:00	-1.985959
56877	HUFL	2018-02-13 11:15:00	-1.881931
56878	HUFL	2018-02-13 11:30:00	-1.665849
56879	HUFL	2018-02-13 11:45:00	-1.601846

[6]:

valid_df.query('unique_id=="HUFL"').head()

[6]:

	unique_id	ds	y
0	HUFL	2018-02-13 12:00:00	-1.809903
1	HUFL	2018-02-13 12:15:00	-1.721828
2	HUFL	2018-02-13 12:30:00	-1.673873
3	HUFL	2018-02-13 12:45:00	-1.801879
4	HUFL	2018-02-13 13:00:00	-1.713803

2. Model setup and fitting

We focus on NHITS, which has been shown to excel on long-horizon forecasting problems.

Default configuration for simplicity

[7]:

from neuralforecast import NeuralForecast
from neuralforecast.models import NHITS
from metaforecast.longhorizon import MLForecastFTN as FTN

CONFIG = {
    'max_steps': 1000,
    'input_size': n_lags,
    'h': horizon,
    'enable_checkpointing': True,
    'accelerator': 'cpu'}

models = [NHITS(start_padding_enabled=True, **CONFIG),]

nf = NeuralForecast(models=models, freq='15min')
ftn = FTN(horizon=horizon, n_neighbors=150, apply_ewm=True)

2024-10-10 23:07:35,369 INFO util.py:154 -- Missing packages: ['ipywidgets']. Run `pip install -U ipywidgets`, then restart the notebook server for rich notebook output.
2024-10-10 23:07:35,423 INFO util.py:154 -- Missing packages: ['ipywidgets']. Run `pip install -U ipywidgets`, then restart the notebook server for rich notebook output.
INFO:lightning_fabric.utilities.seed:Seed set to 1

3. Cross-validation

We first run a validation cycle to estimate FTN’s weights

[8]:

import numpy as np

# auxiliary function to get horizon info
def get_horizon(cv: pd.DataFrame):
    if 'horizon' in cv.columns:
        raise ValueError('"horizon" column already in the dataset.')

    if 'cutoff' in cv.columns:
        cv_g = cv.groupby(['unique_id', 'cutoff'])
    else:
        cv_g = cv.groupby(['unique_id'])

    horizon = []
    for g, df in cv_g:
        df = df.sort_values('ds')
        h = np.asarray(range(1, df.shape[0] + 1))
        hs = {
            'horizon': h,
            'ds': df['ds'].values,
            'unique_id': df['unique_id'].values,
        }
        if 'cutoff' in df.columns:
            hs['cutoff'] = df['cutoff'].values,

        hs = pd.DataFrame(hs)
        horizon.append(hs)

    horizon = pd.concat(horizon)

    if 'cutoff' in cv.columns:
        cv = cv.merge(horizon, on=['unique_id', 'ds', 'cutoff'])
    else:
        cv = cv.merge(horizon, on=['unique_id', 'ds'])

    return cv

[9]:

%%capture

nf.fit(df=dev_df)
ftn.fit(dev_df)

fcst_dev_nf = nf.predict()
fcst_dev_ftn = ftn.predict(fcst_dev_nf)

valid_df = valid_df.merge(fcst_dev_ftn, on=['unique_id', 'ds'], how="left")
valid_df = get_horizon(valid_df)

weights = ftn.alpha_cv_scoring(valid_df)

INFO:pytorch_lightning.utilities.rank_zero:GPU available: True (mps), used: False
INFO:pytorch_lightning.utilities.rank_zero:TPU available: False, using: 0 TPU cores
INFO:pytorch_lightning.utilities.rank_zero:HPU available: False, using: 0 HPUs
INFO:pytorch_lightning.callbacks.model_summary:
  | Name         | Type          | Params | Mode
-------------------------------------------------------
0 | loss         | MAE           | 0      | train
1 | padder_train | ConstantPad1d | 0      | train
2 | scaler       | TemporalNorm  | 0      | train
3 | blocks       | ModuleList    | 3.6 M  | train
-------------------------------------------------------
3.6 M     Trainable params
0         Non-trainable params
3.6 M     Total params
14.445    Total estimated model params size (MB)
INFO:pytorch_lightning.utilities.rank_zero:`Trainer.fit` stopped: `max_steps=1000` reached.
INFO:pytorch_lightning.utilities.rank_zero:GPU available: True (mps), used: False
INFO:pytorch_lightning.utilities.rank_zero:TPU available: False, using: 0 TPU cores
INFO:pytorch_lightning.utilities.rank_zero:HPU available: False, using: 0 HPUs

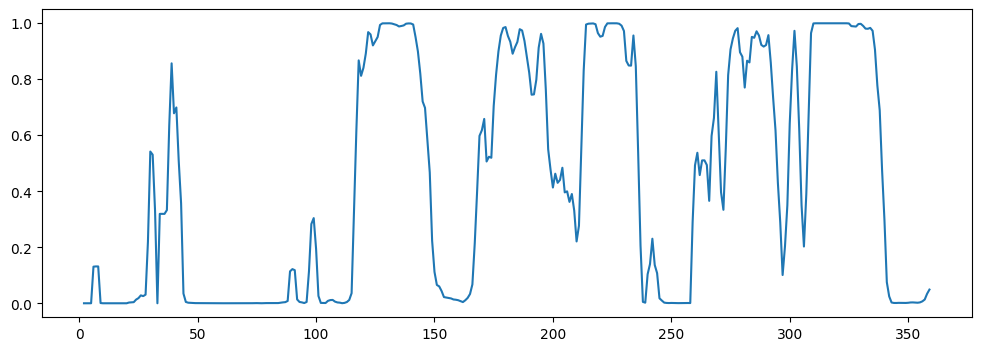

Here are the estimated weights along the horizon. For short-term predictions, FTN is mostly ineffective

[10]:

pd.Series(weights['NHITS']).rolling(3).mean().plot(figsize=(12,4))

[10]:

<Axes: >

../_images/notebooks_05-ftn_cv_nhits_17_1.png

[11]:

ftn.apply_weighting = True
ftn.set_alpha_weights(weights)

4. Re-fitting models

Now, we re-fit both models on the complete training data.

[12]:

%%capture

nf.fit(df=train_df)

INFO:pytorch_lightning.utilities.rank_zero:GPU available: True (mps), used: False
INFO:pytorch_lightning.utilities.rank_zero:TPU available: False, using: 0 TPU cores
INFO:pytorch_lightning.utilities.rank_zero:HPU available: False, using: 0 HPUs
INFO:pytorch_lightning.callbacks.model_summary:
  | Name         | Type          | Params | Mode
-------------------------------------------------------
0 | loss         | MAE           | 0      | train
1 | padder_train | ConstantPad1d | 0      | train
2 | scaler       | TemporalNorm  | 0      | train
3 | blocks       | ModuleList    | 3.6 M  | train
-------------------------------------------------------
3.6 M     Trainable params
0         Non-trainable params
3.6 M     Total params
14.445    Total estimated model params size (MB)
INFO:pytorch_lightning.utilities.rank_zero:`Trainer.fit` stopped: `max_steps=1000` reached.

[13]:

ftn.fit(train_df)

100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 7/7 [00:00<00:00, 11.87it/s]

[14]:

fcst_nf = nf.predict()

fcst_ftn = ftn.predict(fcst_nf)

INFO:pytorch_lightning.utilities.rank_zero:GPU available: True (mps), used: False
INFO:pytorch_lightning.utilities.rank_zero:TPU available: False, using: 0 TPU cores
INFO:pytorch_lightning.utilities.rank_zero:HPU available: False, using: 0 HPUs

Predicting DataLoader 0: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:00<00:00, 110.51it/s]

100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 7/7 [00:00<00:00, 46.07it/s]

[15]:

fcst_ftn.head()

[15]:

	ds	NHITS	NHITS(WFTN)
unique_id
HUFL	2018-02-17 06:00:00	-2.142243	-2.142243
HUFL	2018-02-17 06:15:00	-2.135545	-2.135545
HUFL	2018-02-17 06:30:00	-2.128394	-2.128394
HUFL	2018-02-17 06:45:00	-2.119522	-2.119522
HUFL	2018-02-17 07:00:00	-2.100488	-2.100487

Below are the weights of each model (equal across all unique ids because weight_by_uid=False)

Then, we refit the neural networks are get the test forecasts

4. Evaluation

Finally, we compare all approaches

[16]:

test_df = test_df.merge(fcst_ftn, on=['unique_id','ds'], how="left")

[17]:

from neuralforecast.losses.numpy import smape
from datasetsforecast.evaluation import accuracy

evaluation_df = accuracy(test_df, [smape], agg_by=['unique_id'])

[18]:

eval_df = evaluation_df.drop(columns=['metric','unique_id'])

eval_df

[18]:

	NHITS	NHITS(WFTN)
0	0.162648	0.163075
1	0.253831	0.258548
2	0.046690	0.042557
3	0.570899	0.494612
4	0.194261	0.209592
5	0.323341	0.390476
6	0.217687	0.214806

[21]:

eval_df.mean().sort_values()

[21]:

NHITS          0.252765
NHITS(WFTN)    0.253381
dtype: float64

[22]:

eval_df.median().sort_values()

[22]:

NHITS(WFTN)    0.214806
NHITS          0.217687
dtype: float64
